Pigging System - HPS Bi-Directional Pigs

Function
         The term "Pigging" refers to the operation of forcing a flexible projectile, called a Pig, through a product transfer pipe. The HPS Pig is forced through the pipe by pressurizing the pipe work behind it with compressed air, Co2, nitrogen, water or even the next product. The liquid residue in the pipe that would normally be flushed to drain, waste treatment or collection areas is instead pushed by the Pig and forced to the destination filler or tank.

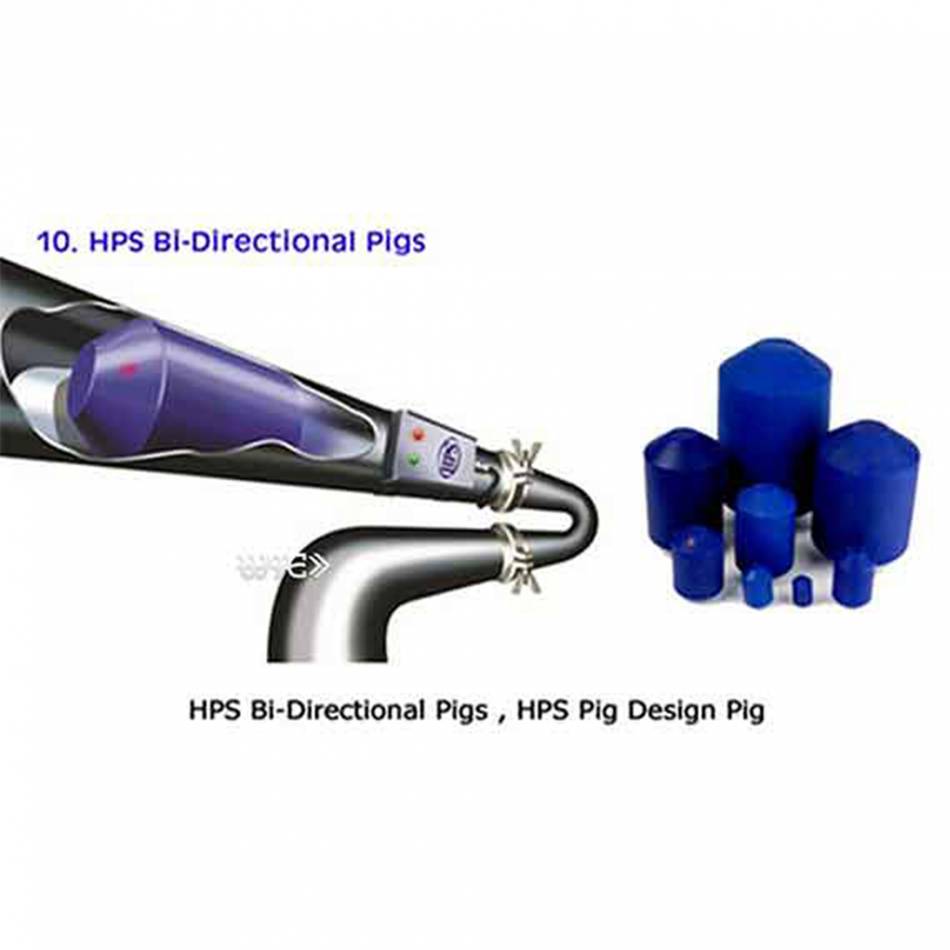

HPS Pig Design
         Unique features of the flexible patented HPS Pig include low pressure propulsion, ability to travel through standard 1.5D-90 degree pipe bends and a recovery efficiency of over 99.5%

         The internal core of the HPS pig contains flexible magnetized silicone that allows it to be detected in the pipe non-intrusively, using a specifically designed HPS Pig Detector.

Features
   • Range from 1 inch to 8 inch
   • Bi-Directional
   • Can be steam cleaned to 250°C without degredation
   • Long life duty
   • Compliant with federal code of regulations CFR 21 parts 177-2600, 178 3297 and 582-1210
   • FDA Approval Specification 177.2600
